Create custom image simulation methods
CryoJAX is built to support new image simulation methods external to the main codebase. To achieve this, cryoJAX models and algorithms--e.g. for volumes, CTFs, and poses--are built on abstract base classes.
To name a few, the following table outlines abstract base classes for key modeling components in cryoJAX:
| Modeling component | Abstract base class |
|---|---|
| Model image formation | AbstractImageModel |
| Represent a volume for imaging | AbstractVolumeRepresentation |
Project an AbstractVolumeRepresentation on imaging plane |
AbstractVolumeIntegrator |
| Contrast transfer functions | AbstractCTF |
| Pose | AbstractPose |
To see what exactly needs to be implemented for a particular abstract base class, it is necessary to read the cryoJAX documentation or source code.
In this tutorial it is demonstrated how to extend the AbstractCTF class for use with other existing image simulation code. A simple model for defocus and spherical aberration will be implemented with aberration function \(\chi\) as
where \(\vec{q}\) is an in-plane spatial frequency vector, \(\lambda\) is wavelength, \(\Delta f\) is defocus, and \(C_s\) is the spherical aberration coefficient.
# Plotting imports and functions
from matplotlib import pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
def plot_image(image, cmap="gray", label=None, **kwargs):
fig, ax = plt.subplots(figsize=(3, 3))
im = ax.imshow(image, cmap=cmap, origin="lower", **kwargs)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="5%", pad=0.05)
fig.colorbar(im, cax=cax)
if label is not None:
ax.set(title=label)
return fig, ax
# Start with building other image simulation components
import cryojax.simulator as cxs
import equinox as eqx
import jax
from cryojax.io import read_array_from_mrc
jax.config.update("jax_enable_x64", True)
# ... scattering potential stored in MRC format
filename = "./data/groel_5w0s_scattering_potential.mrc"
# ... read into a FourierVoxelGridPotential
real_voxel_grid, voxel_size = read_array_from_mrc(filename, loads_grid_spacing=True)
volume = cxs.FourierVoxelGridVolume.from_real_voxel_grid(real_voxel_grid, pad_scale=2)
# ... instantiate the pose. Angles are given in degrees
pose = cxs.EulerAnglePose(
offset_x_in_angstroms=5.0,
offset_y_in_angstroms=-3.0,
phi_angle=20.0,
theta_angle=80.0,
psi_angle=-5.0,
)
# ... the configuration. Add padding with respect to the final image shape.
pad_options = dict(shape=volume.shape[0:2])
config = cxs.BasicImageConfig(
shape=(80, 80),
pixel_size=voxel_size,
voltage_in_kilovolts=300.0,
pad_options=pad_options,
)
# Now, define function for image simulation
@eqx.filter_jit
def simulate_fn(ctf: cxs.AbstractCTF, ac: float, args: tuple) -> jax.Array:
volume, config, pose = args
transfer_theory = cxs.ContrastTransferTheory(ctf=ctf, amplitude_contrast_ratio=ac)
image_model = cxs.make_image_model(
volume,
config,
pose,
transfer_theory,
normalizes_signal=True,
)
return image_model.simulate()
First, just the defocus term of the CTF will be implemented. To do so, the interface for an AbstractCTF must be implemented. The jist of what this looks like is the following:
class AbstractCTF(eqx.Module, strict=True):
"""An abstract base class for a CTF in cryo-EM."""
@abstractmethod
def compute_aberration_phase_shifts(
self,
frequency_grid_in_angstroms,
wavelength_in_angstroms,
defocus_offset=None,
):
raise NotImplementedError
There is a single abstractmethod to implement for the aberration function \(\chi\).
import cryojax.simulator as cxs
import jax
import jax.numpy as jnp
from cryojax.jax_util import NDArrayLike
class CustomCTF(cxs.AbstractCTF): # First, subclass `AbstractCTF`
defocus_in_angstroms: jax.Array # Next, parameters are `dataclass` fields
def __init__(self, defocus_in_angstroms: float | jax.Array):
self.defocus_in_angstroms = jnp.asarray(defocus_in_angstroms, dtype=float)
def compute_aberration_phase_shifts(
self,
frequency_grid_in_angstroms: jax.Array,
wavelength_in_angstroms: float | NDArrayLike,
defocus_offset: float | NDArrayLike | None = None,
) -> jax.Array:
"""Finally, implement the interface defined by `AbstractCTF`"""
q_squared = jnp.sum(frequency_grid_in_angstroms**2, axis=-1)
defocus = self.defocus_in_angstroms
if defocus_offset is not None:
defocus += defocus_offset
return -jnp.asarray(jnp.pi * wavelength_in_angstroms * defocus * q_squared)
How do classes work in cryoJAX?
Classes in cryoJAX are built on equinox.Modules. These are reminiscent of a PyTorch torch.nn.Module, but also have python dataclass-like features and smoothly integrate with JAX functional programming.
CryoJAX's abstract base class paradigm is inspired from other libraries in the JAX+Equinox ecosystem. To learn more, see lineax, optimistix, and diffrax.
# Now, simulate an image using our `CustomCTF`
args = (volume, config, pose)
custom_ctf = CustomCTF(defocus_in_angstroms=10_000) # 1 um defocus
image_1 = simulate_fn(custom_ctf, ac=0.1, args=args)

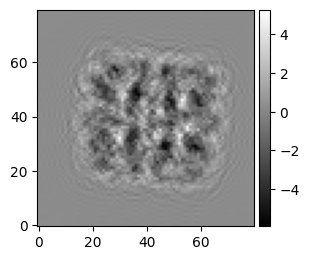

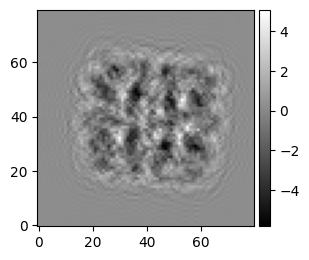

plot_image(image_1)
(<Figure size 300x300 with 2 Axes>, <Axes: >)
# This image should be identical to cryoJAX's built-in CTF at zero
# astigmatism and spherical aberration!
builtin_ctf = cxs.AstigmaticCTF(
defocus_in_angstroms=10_000,
spherical_aberration_in_mm=0.0,
astigmatism_in_angstroms=0.0,
)
test_image_1 = simulate_fn(builtin_ctf, ac=0.1, args=args)
assert jnp.allclose(image_1, test_image_1)
That was easy! Implementing abstract interfaces is the most important concept to know for extending cryoJAX, but it is also possible to modify existing implementations by wrapping existing implementations. To demonstrate this, we can modify the CustomCTF to also include a spherical aberration term.
class WrappedCTF(cxs.AbstractCTF): # Implement a new `AbstractCTF`
ctf: CustomCTF # Wrap the `CustomCTF`
spherical_aberration_in_mm: jax.Array
def compute_aberration_phase_shifts(
self,
frequency_grid_in_angstroms,
wavelength_in_angstroms,
defocus_offset=None,
):
q_squared = jnp.sum(frequency_grid_in_angstroms**2, axis=-1)
Cs = 1e7 * self.spherical_aberration_in_mm # mm to Angstroms
# Compute the `CustomCTF`` aberration function
chi = self.ctf.compute_aberration_phase_shifts(
frequency_grid_in_angstroms, wavelength_in_angstroms, defocus_offset
)
# Modify output to include spherical aberration term
chi += (jnp.pi / 2) * Cs * wavelength_in_angstroms**3 * q_squared**2
return chi
# Simulate an image using the `WrappedCTF`
args = (volume, config, pose)
wrapped_ctf = WrappedCTF(ctf=custom_ctf, spherical_aberration_in_mm=2.7)
image_2 = simulate_fn(wrapped_ctf, ac=0.1, args=args)

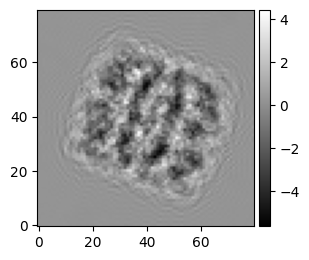

plot_image(image_2)
(<Figure size 300x300 with 2 Axes>, <Axes: >)
# Again, confirm that this is the same as the native cryoJAX implementation
builtin_ctf = cxs.AstigmaticCTF(
defocus_in_angstroms=10_000,
spherical_aberration_in_mm=2.7,
astigmatism_in_angstroms=0.0,
)
test_image_2 = simulate_fn(builtin_ctf, ac=0.1, args=args)
assert jnp.allclose(image_2, test_image_2)
While this is a toy example, the principle applies generally in cryoJAX and is meant to support an ecosystem of cryo-EM research projects. For example, one can implement custom volumes via the AbstractVolumeRepresentation and AbstractVolumeIntegrator interfaces to model particular proteins or parametrize conformational heterogeneity.
What next? There is a wide range of possible image formation modeling in cryoJAX to learn about. For example, other useful abstract interfaces include the following:
| Modeling component | Abstract base class |
|---|---|
Function returning an AbstractVolumeRepresentation |
AbstractVolumeParametrization |
| Noise models | AbstractNoiseModel |
| Filters and masks | AbstractFilter and AbstractMask |
| Scattering approximations | AbstractScatteringTheory |
| Detectors and DQEs | AbstractDetector and AbstractDQE |
